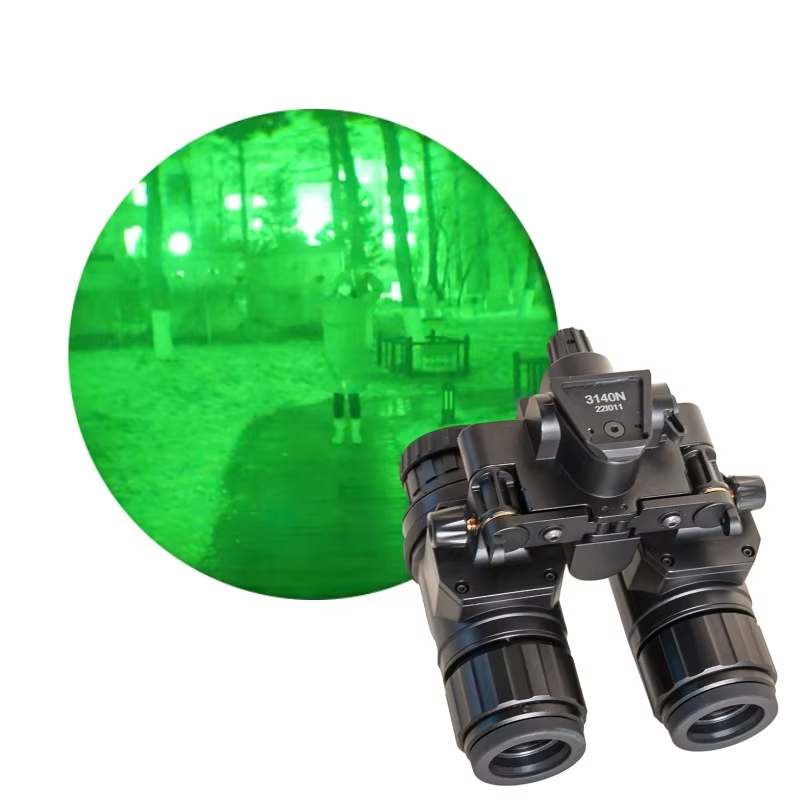

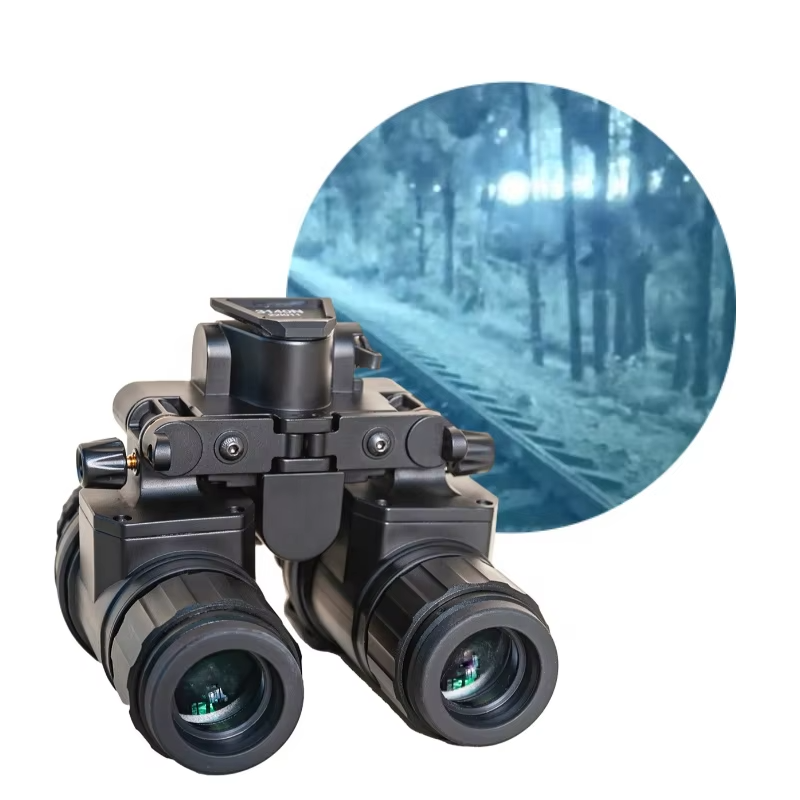

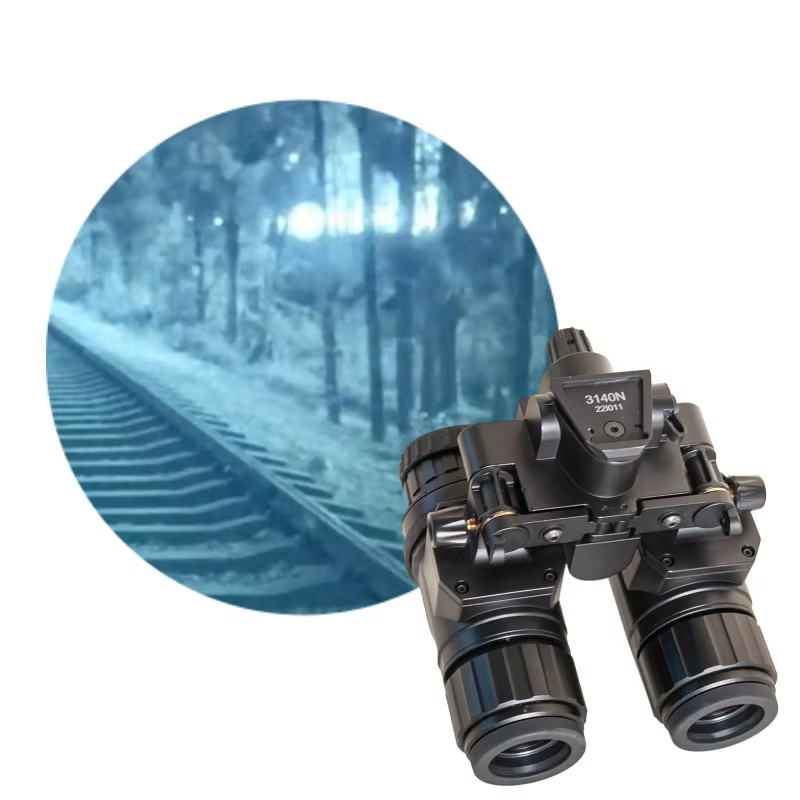

Helmet Night Vision Binoculars has an ergonomic low-profile design and offers superior situational awareness compared to a single tube goggles. The binocular type night vision goggle was designed to increase system resolution, significantly reduce head-borne weight and improve system center of gravity, and improve overall operator situational awareness as compared to currently fielded dual-tube night vision goggles .
|
Specification
|
||
|
Product
|
PVS31
|
|
|
Structural Mode
|
Arbitrary turn it over
|
|
|
Rollover Detection
|
Automatically detect and power off when turning up
|
|
|
Battery Type
|
Lithium batter (CR123*1) /CR23*4 (external batter box)
|
|
|
Power Supply
|
2.6V – 4.2V
|
|
|
Installation
|

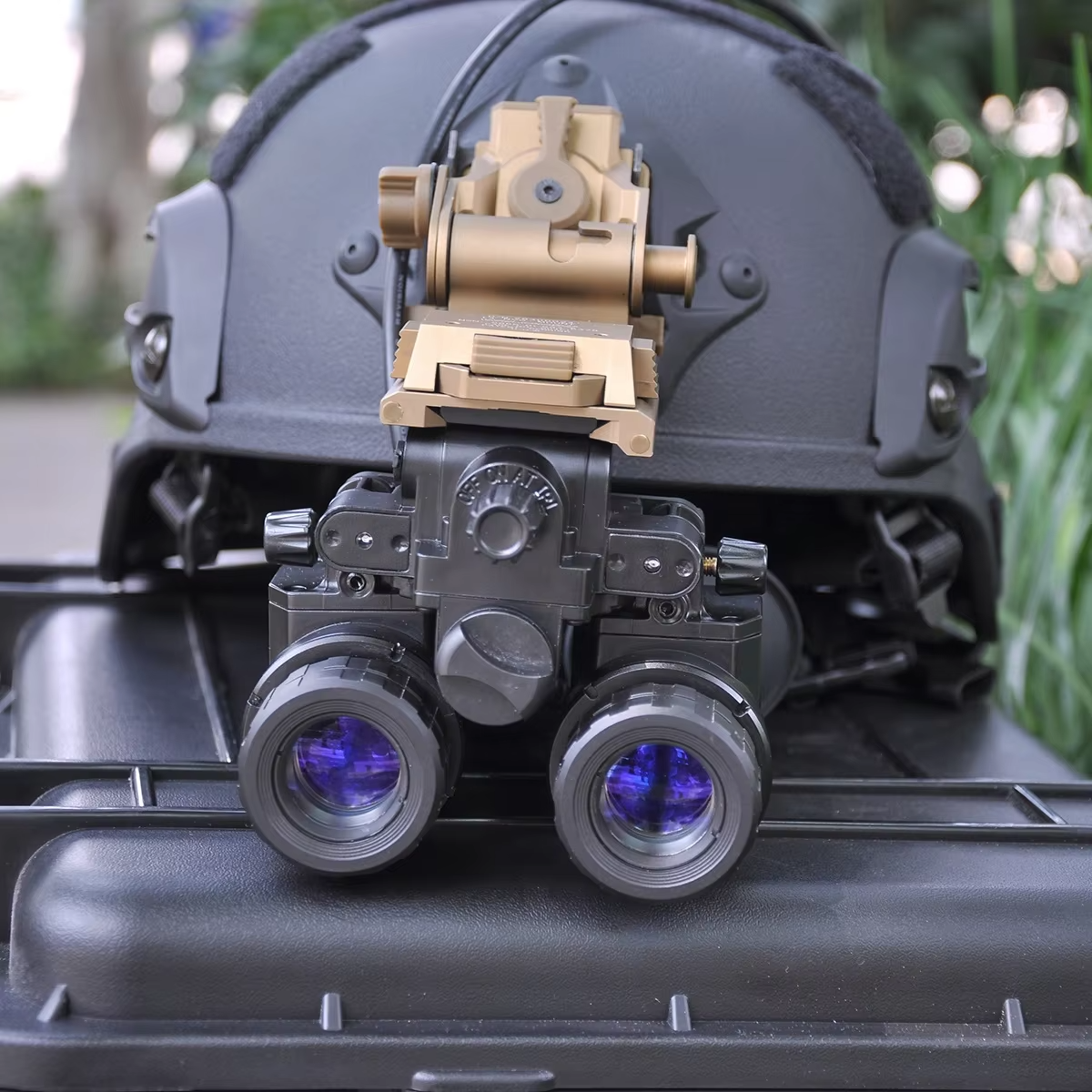

Head mounted(standard American helmet interface)
|
|
|
Control mode
|
ON/IR/AUTO
|
|
|
Battery Life
|
40-100hrs
|
|
|
Photocatode type
|
18 mm S-25
|
|
|
Resolution
|
>60lp/mm
|
|
|
SNR
|
>22
|
|
|
Magnification
|
1x
|
|
|
FOV
|
40°±2° (50°±2° )
|
|
|
Parallelism of Optical Axis
|
<0.1°
|
|
|
Lens System
|
25 mm, F/1.2
|
|
|
Coating
|
Multilayer broadband coating
|
|
|
Range of Focus
|
0.25 m to infinity
|
|
|
Focus Mode
|
Manual focus facility
|
|
|
Distance of Pupil
|
30 mm
|
|
|
Eyepiece Aperture
|
8 mm
|
|
|
Range of Visibility
|
-4DS~+4DS
|
|
|
Eye Spacing Adjustment
|
Arbitrary continuous adjustable
|
|
|
Eye Distance Adjustment Range
|
50-72mm
|
|
|
Eye Distance Locking Method
|
Manual locking
|
|
|
IR
|
850 nm, 20 mW
|
|
|
Operating Temperature
|
-40℃ to +55°C
|
|
|
Humidity
|
5%-95%
|
|
|
Environment Rating
|
IP65
|
|
|

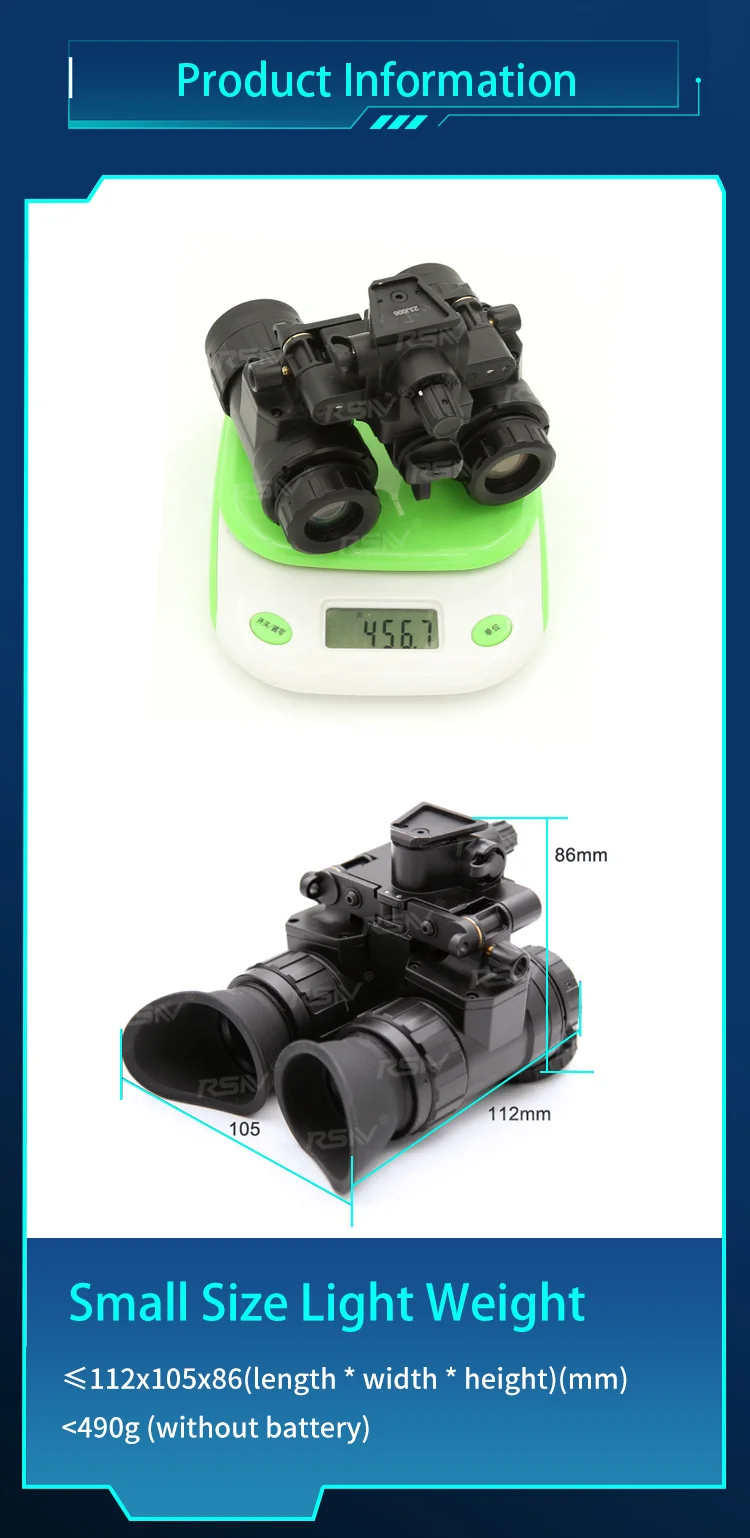

Dimensions
|
112* 105* 86 mm
|
|
|
Weight
|
490 g (Without battery)
|
|
Our factory covers an area of 12,668 square meters, with a building area of 8,000 square meters, including 5,500 squaremeters for scientific research and production.At present, there are more than 260 staffs, including 51scientific research and technical personnel. Our R&D Department Team has consistently allowed us to launch cutting edge and innovative products and technologies. And we has a variety of optical, mechanical, processing,assembly and testing equipment more than 260 sets. We have complete Environmental Testing Equipment, existing High and Low Temperature Test Equipment, Rain Laboratory, Simulation Transportation, Vibration Test Equipment, Impact Test Equipment, can meet the experimental needs of all kinds of products Professional quality inspection provides comprehensive guarantee for the quality of our products.
A: RSNV is a professional manufacturer of night vision, thermal vision and other photoelectric products.Our factory definitely provide OEM or ODM service, we can make the product as your request,OEM packaging & logo.The MOQ is 100PCS.Please contact us.
Q2. What products can you provide?
A: We can provide high-quality night vision products, infrared thermal imaging devices, Gen2+/Gen3 image intensifier tubes,infrared detectors, other optoelectronics products and core accessories,as your requirement.
Q3.What is the lead time of your products?
A: It depends on your order quantity.Usually it needs 3-5 days for product in stock and about 30 days for customizedorder. If thequantity is large, please contact us about the delivery time.
Q4. What is your payment term?
A: By Alibaba Trade Assurance or T/T/Paypal in advance or communicate with us.
Q5. What is the shipping method?
A: We usually shipping by expresssuch as UPS,TNT.DHL,FedEx.etc.Please contact us if you have any requirements.
Q6. How long is the warranty?
A: We provide at least one year of warranty service.
